DuraLabel Toro Max & Kodiak Max Arc Flash Kit
Elevate your electrical safety standards with the DuraLabel Toro Max Kodiak Max Arc Flash Kit. Designed for NFPA 70E and NEC compliance, this comprehensive arc flash kit comes with everything needed to produce high-quality, durable arc flash signs and labels of any size. The kit includes two powerful printing systems and an expanded selection of industrial labels that withstand harsh jobsite conditions.
Benefits and Features
- NFPA 70E and NEC Compliance: Ensure your facility meets electrical safety standards.
- Versatile Printing Systems: Use the mobile Toro Max for on-the-go labeling and the Kodiak Max for large projects.
- Tough-Tested Supplies: Our industrial labels and supplies withstand the harshest conditions.
*Pricing valid only in the US and Canada.

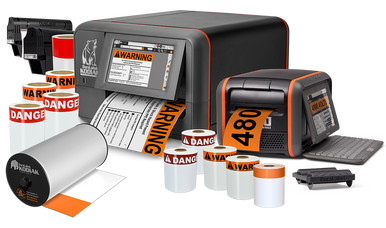

Kit Includes
| Qty. | SKU | Description |
|---|---|---|
| 1 | DLKODIAKMAX | DuraLabel Kodiak Max Printer—software included |
| 1 | DLTOROMAX | DuraLabel Toro Max Printer—software included |
| 2 | K0609-7O | 6" x 9" Orange WARNING Outdoor Arc Flash, Health & Safety Labels (60 labels/roll) |
| 2 | K0609-8O | 6" x 9" Red DANGER Outdoor Arc Flash, Health & Safety Labels (60 labels/roll) |
| 1 | K9-4250 | 9" x 50' Orange Stripe Arc Flash/OSHA Two-Color Vinyl Tape (2.5" stripe) |
| 1 | K9-5250 | 9" x 50' Red Stripe Arc Flash/OSHA Two-Color Vinyl Tape (2.5" stripe) |
| 1 | KM861110 | 8.6" x 361' Black Premium Ribbon |
| 1 | KM861111 | 8.6" x 361' White Premium Ribbon |
| 2 | T0406-7ON | 4" x 6" Orange WARNING Outdoor Arc Flash, Health & Safety Labels (200 labels/roll) |
| 2 | T0406-8ON | 4" x 6" Red DANGER Outdoor Arc Flash, Health & Safety Labels (200 labels/roll) |
| 1 | T4-4100 | 4" x 70' Orange Stripe Arc Flash/OSHA Two-Color Vinyl Tape (1" stripe) |
| 1 | M431110 | 4" x 361' Black Premium Ribbon |
Supplies may be added or substituted.
- Specification Size
- Toro Max: 13.5"(W) x 10.25" (D) x 8.5"(H)
Kodiak Max: 17.4"(W) x 19.5"(D) x 11.8"(H) - Weight
- Toro Max: 12.5 lbs (5.67 kg)
Kodiak Max: 43.4 lbs (19.7 kg) - Print technology
- Toro Max & Kodiak Max: Thermal Transfer
- Resolution
- Toro Max & Kodiak Max: 300 DPI
- Print Speed
- Toro Max: Up to 3 inches per second
Kodiak Max: 2 inches per second - Print Width
- Toro Max: 0.5" to 4.0"
Kodiak Max: 4.0" to 10.0" - Maximum Print Length
- Toro Max: 120"
Kodiak Max: 100" - Indicators
- Toro Max: Power, Printer Status, Supply Status, Battery Status
Kodiak Max: Power, Printer Status, Supply Status - Buttons
- Toro Max: Power, Supply Feed, Keyboard Release, Screen Release, and Battery Release
Kodiak Max: None - Connectivity
- Toro Max: USB 2.0 (4x USB-A, 1x USB-B), and Ethernet
Kodiak Max: USB 2.0 (front 2x USB-A, back 2x USB-A, 1x USB-B), Ethernet, and Wi-Fi - Display
- Toro Max & Kodiak Max: 9" Capacitive Touchscreen
- Memory
- Toro Max: 4 GB Flash, 1 GB SDRAM
Kodiak Max: 4 GB Flash, 2 GB SDRAM - Cutter
- Toro Max & Kodiak Max: Automatic
- Input Voltage
- Toro Max & Kodiak Max: 100-240 VAC
- Software
- Toro Max and Kodiak Max: LabelForge PRO (Arc Flash, Label Editor, GHS, NFPA, Pipe Marking modules) & PDF Viewer
- Battery type
- Toro Max: Li-Ion (sold separately)
Kodiak Max: N/A - Operation Temperature
- Toro Max: 41°F to 104°F (5°C to 40°C)
Kodiak Max: 50°F to 104°F (10°C to 40°C) - Operation Humidity
- Toro Max & Kodiak Max: 30-85%, non-condensing
- Storage Temperature
- Toro Max: -4°F to 122°F (-20°C to 50°C)
Kodiak Max: -4°F to 140°F (-20°C to 60°C) - Storage Humidity
- Toro Max & Kodiak Max: 10-90%, non-condensing
- Ribbon Supply Capacity
- Toro Max & Kodiak Max: 361'
- Warranty
- Toro Max & Kodiak Max: 5 years
- Environmental Compliance
- Toro Max & Kodiak Max: WEEE, CE, FCC, IC
